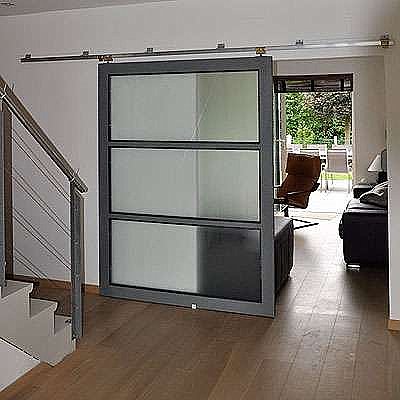

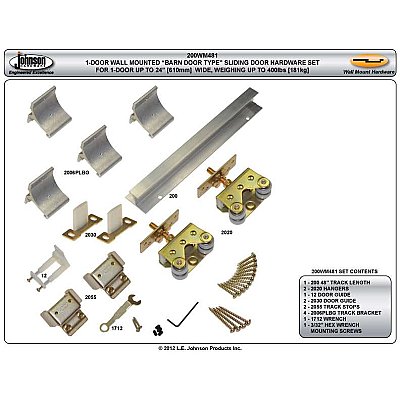

The 200WM is a heavy-duty wall mounted sliding door hardware set for interior residential or commercial applications. Ideally suited for use when traditional pocket doors cannot be cost effectively or structurally installed the 200WM offers a flexible door operating solution. The 200WM features a thick walled precision extruded aluminum I-beam track and heavy-duty extruded aluminum mounting brackets that can be positioned along the track to anchor into wall studs. Four-wheeled ball bearing hangers assure smooth operation and removable hanger plates allow for easy door installation and removal. Two different door guides are supplied with the hardware set for maximum installation flexibility.14 – 16 gauge zinc trivalent plated steel parts. Track lengths are available 48", 60", 72", 96", up to 192" [4877mm]. Sets include all necessary hardware less door, trim and fascia. Track can be cut down to fit any smaller size openings. 2006 mounting brackets must be located to assure solid anchor (16" on center recommended).

For installation instructions for bypass (double) door installation, click here.
